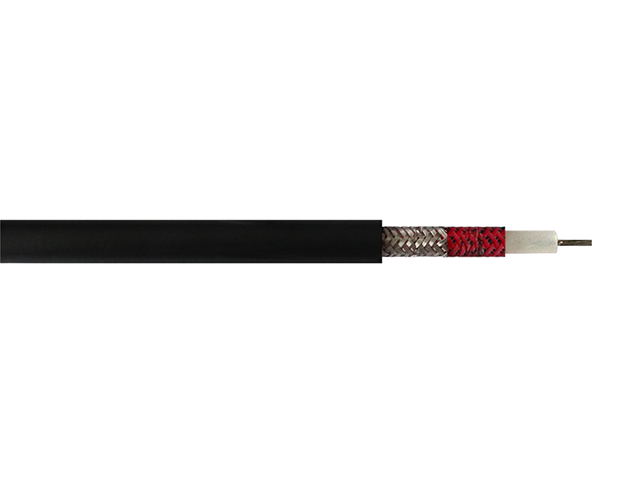

GEVZ-P 150KVDC 105℃ Flame retardant shielded high voltage line

Applications

Electrostatic spraying, high-voltage power grids, medical equipment, prison grids and other high voltage leads.

technical parameter

01Nominal voltage:150KVDC
02Temperaturature Range:-70℃～ +105℃
03Outer diameter tolorance:±0.3mm
04Testing Voltage:150KVDC
05Conductor:Tinned Copper
06Insulator:Ultra high pressure PE
07Flame-retardant sheath:Flame retardant polymer
08Shield:tin-plated copper wire

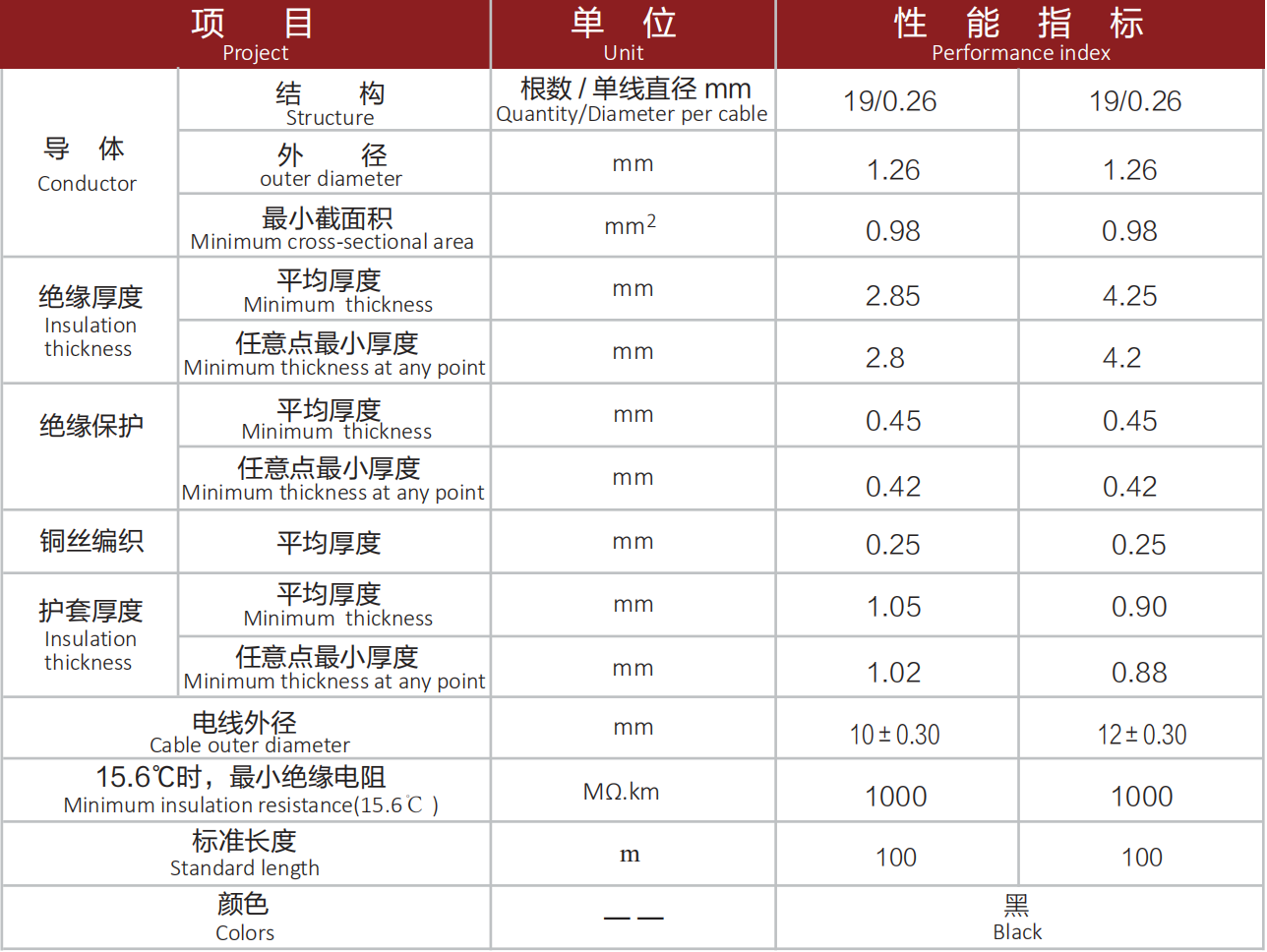

Structure size chart

GEVZ-P 150KVDC 105℃阻燃屏蔽高压线.png
