Special Wires series

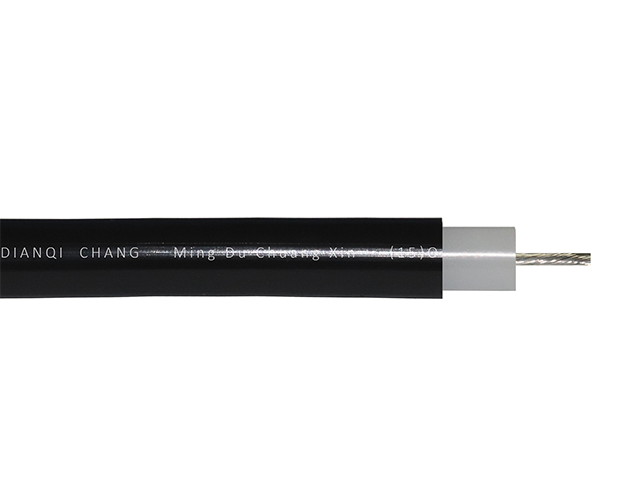

GEVZ 150KVDC Fire retardant high voltage cable
Applications
Electrostatic spraying, high voltage power grid, medical equipment, prison power grid and other high voltage leads, products are imported ultra-high voltage insulation materials, with high voltage resistance, widely used for electrostatic spraying high voltage connection line.
technical parameter
01Nominal voltage:150KVDC
02Temperaturature Range:-40℃～ +90℃
03Outer diameter tolorance:±0.3mm
04Testing Voltage:150KVDC
05Conductor:Tinned Copper
06Insulator:Ultra high pressure PE
07Flame-retardant sheath:Flame retardant polymer

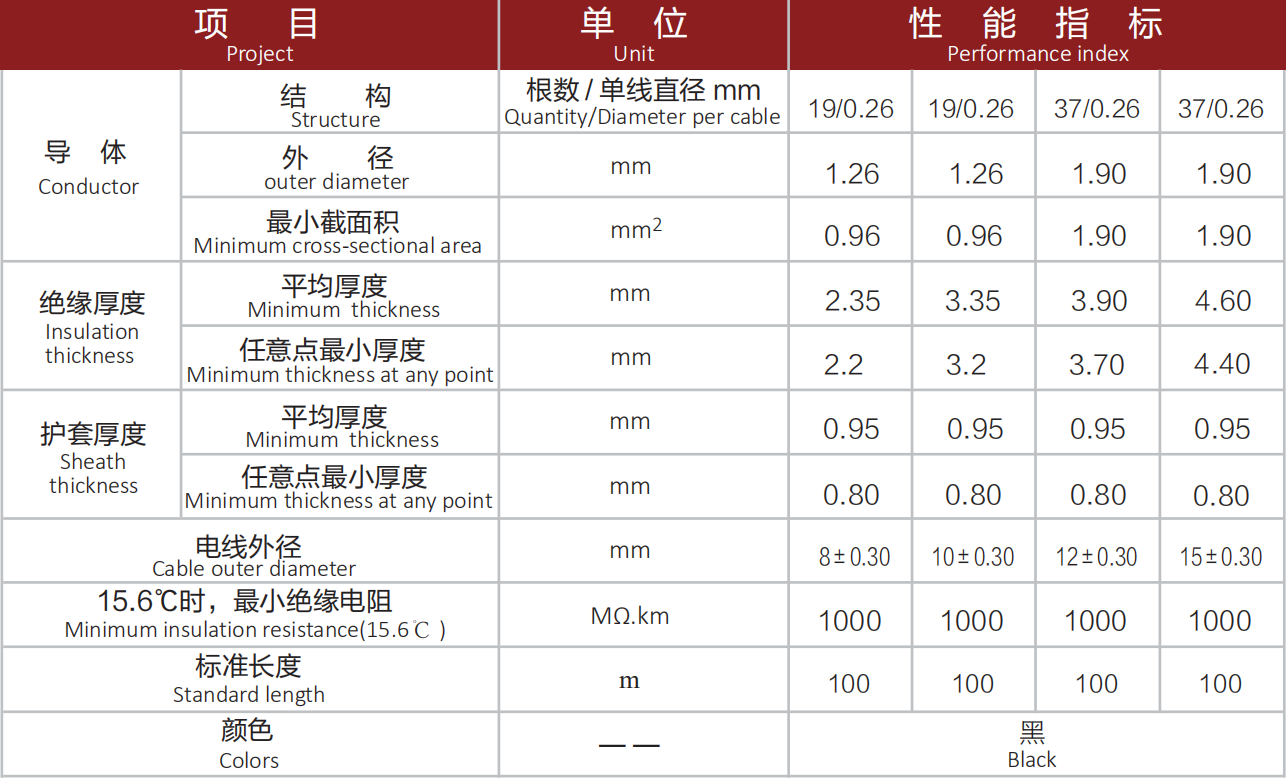

Structure size chart
GTO-15 15KV Fire retardant high voltage cable
Neon lights, lawn mowers, medical machinery, automotive lectronics, high-voltage equipment and other occasions of high-voltage lead
GEVZ-P 150KVDC 105℃ Flame retardant shielded high voltage line
Electrostatic spraying, high-voltage power grids, medical equipment, prison grids and other high voltage leads.
