UL3239 40KVDC Fire retardant high voltage cable

Special Wires series

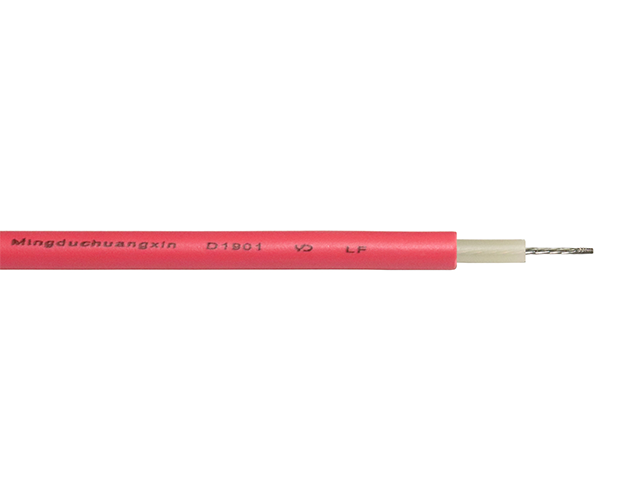

UL3239 40KVDC Fire retardant high voltage cable

Applications
High voltage leads in various occasions are widely used in smoke-free barbecue machines and billboards, etc., which have the advantages of high flame retardant, high electrical performance, high intensity and long life.
technical parameter
01Nominal voltage:40KVDC

02Temperaturature Range:-40℃~ +105℃

03Outer diameter tolorance:±0.15mm

04Testing Voltage:60KVAC

05Conductor:Tinned Copper

06Insulator:PE

07Flame-retardant sheath:Flame retardant polymer

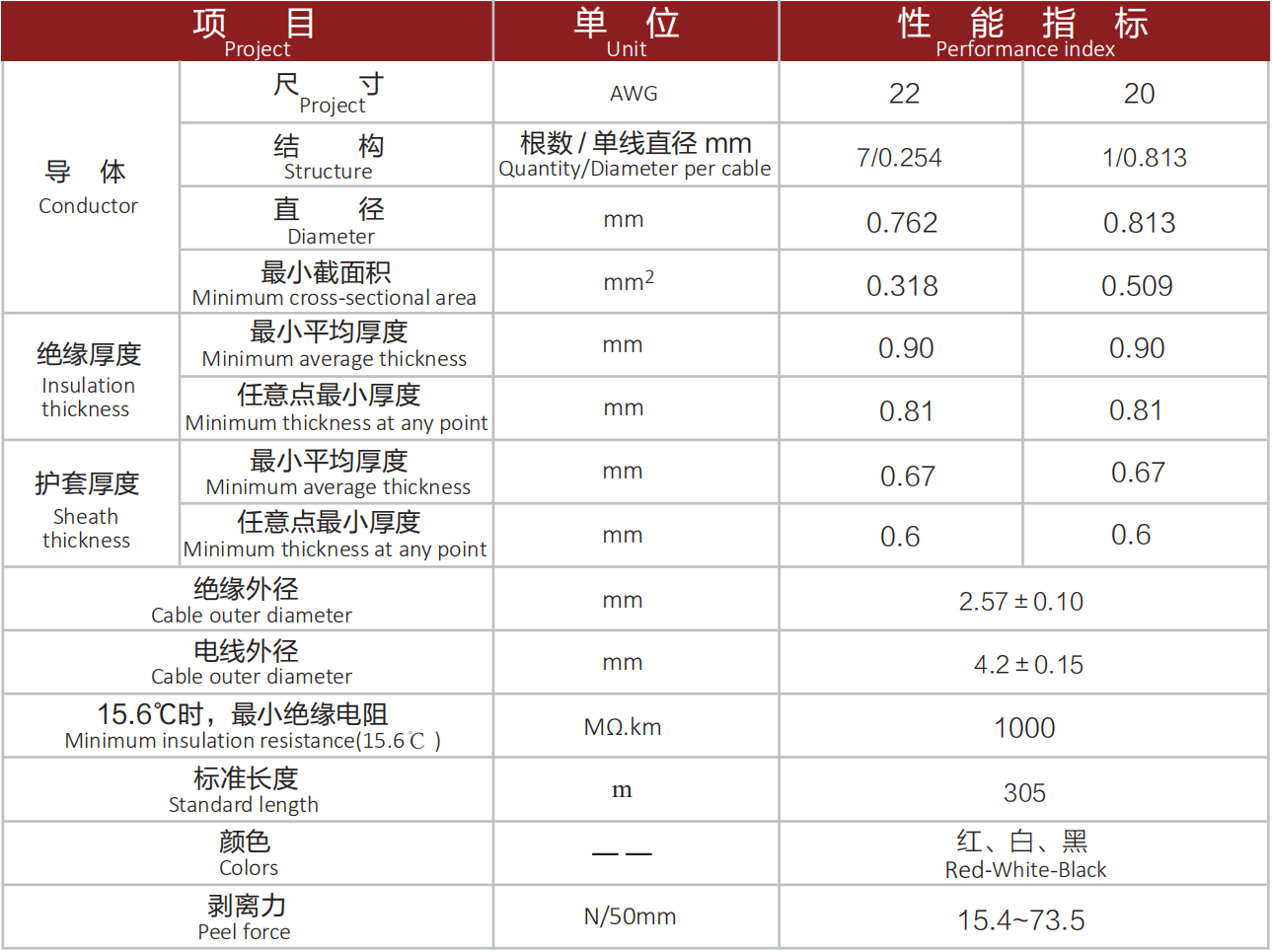

Structure size chart

UL3239 40KVDC 阻燃高压线.png
